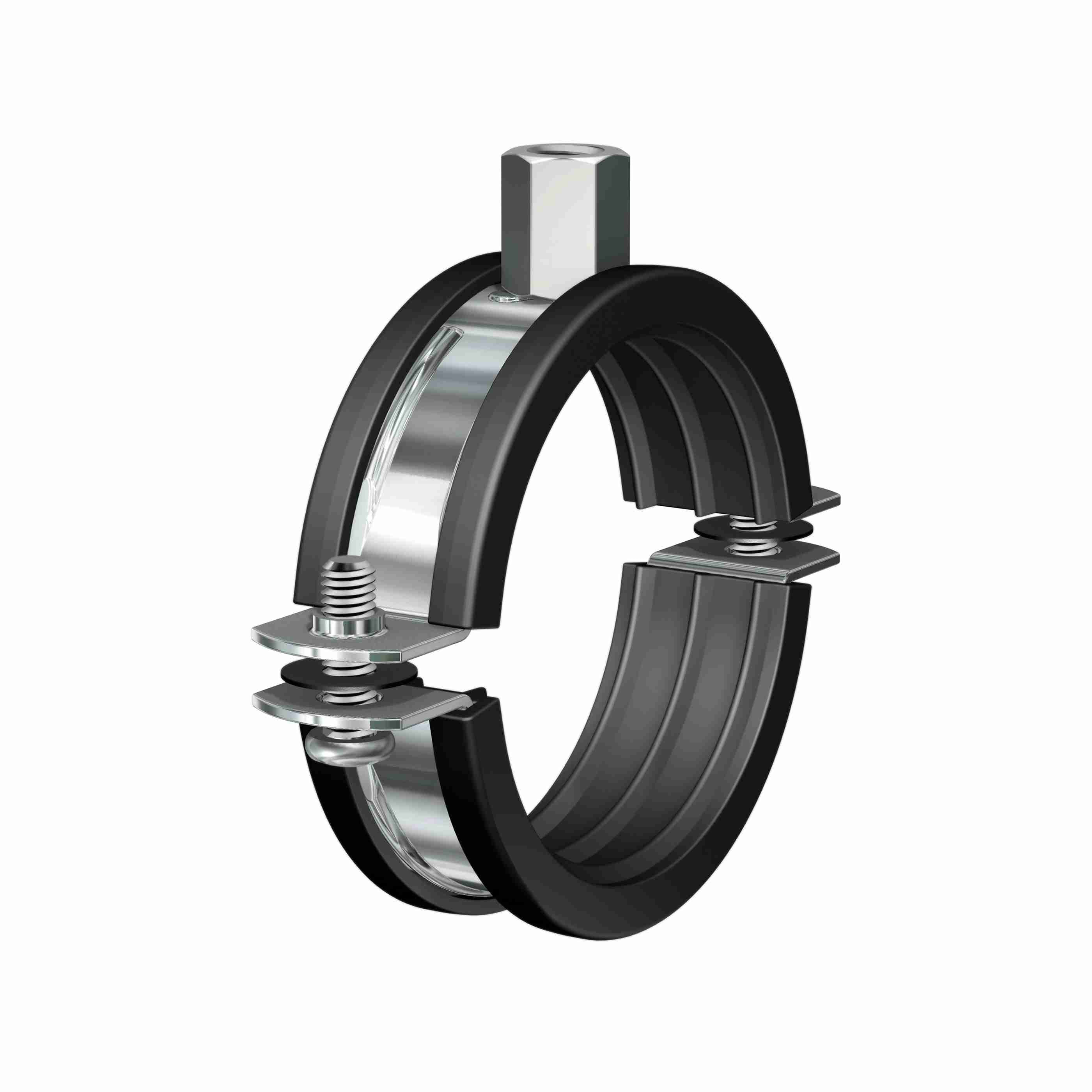

BSI HDI Hot Dip Galv Lined Pipe Clamps

BSI Lined Pipe Clamps

BSK-I Lined Clips For Plastic Pipe

BSF Unlined Clip M8-M10 Z-P

BSU Unlined Pipe Clamps

BRS-A Stainless Steel Lined Pipe Clamps

BRS Stainless Steel Unlined Pipe Clamps

Threaded Rod & Cut Studs

Drop In Anchors

Concrete Screws

Female Backplates

Stainless Steel Accessories

G Clamps

Flamco

Flamco_Logo

Flamco Pipe Clamps and Rails:

Click here for Technical Brochure

Rails

Installing pipe suspension systems or wall bracket systems quickly and efficiently is easy if one uses Flamco rails and accessories. Flamco has specifically developed a complete range for this purpose.

The various brackets and clamps can be fitted next to each other, on a single rail, for instance. The flat slotted construction makes fitting in a restricted space possible. Sliding rail lock nuts can also glide smoothly to the correct position on the rail.

Advantages:

Short installation height thanks to the flat grooved construction.
The ergonomic design of the rail ensures that sliding nuts and similar components slide easily into place.
Flamco fittings and components are common and compatible across the entire range of Flamco rail.

Pipe Clamps

Flamco offer a wide range of universal mounting clips with a variety of closures, connections and finishes. With or without sound absorbing rubber lining.

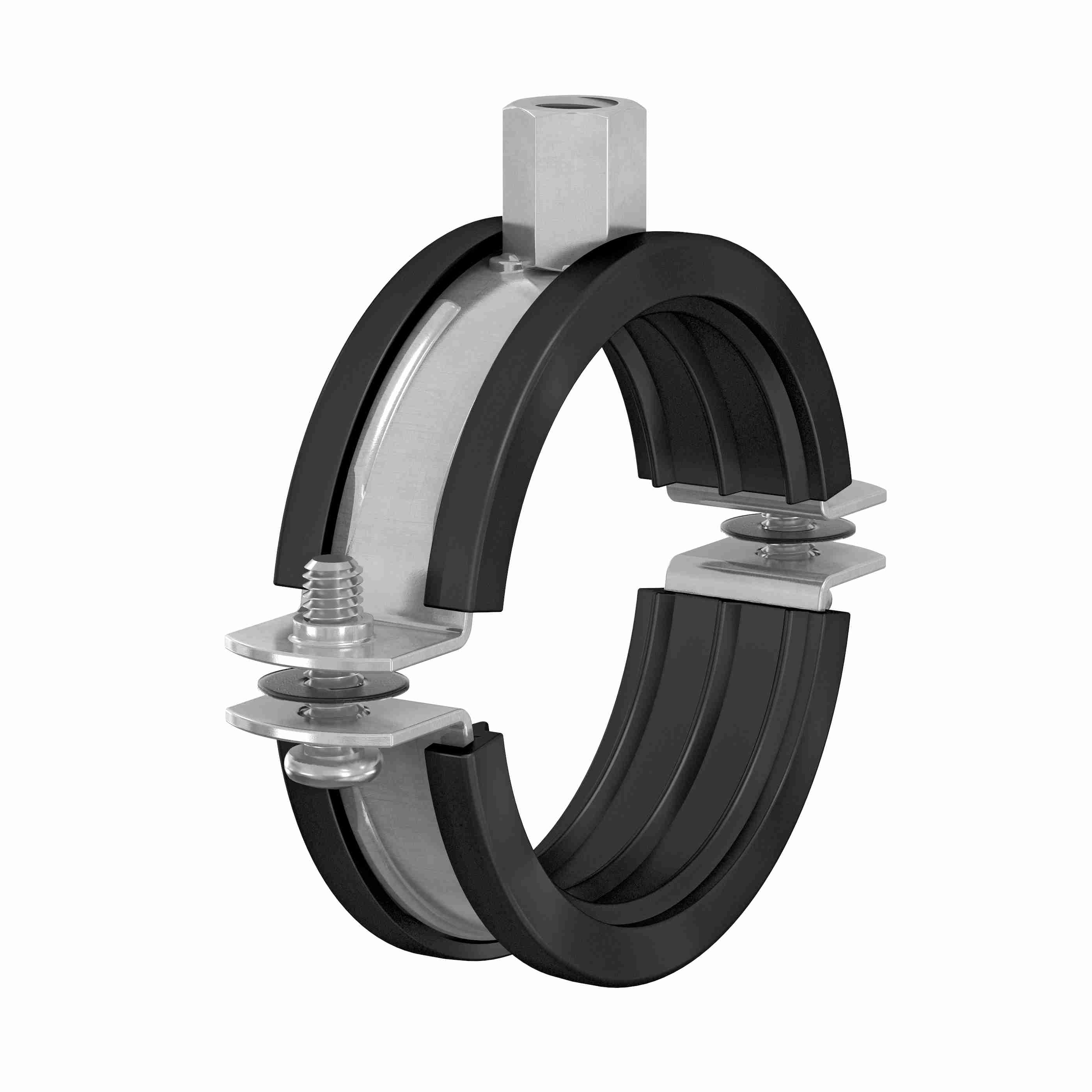

BSI Clips
With noise suppressing rubber lining.

Rigidity provided by the reinforcing grooves.
Combined M 8/10 and M 10/12 connection.
Suitable for short installation dimensions; bolt has a slot/Phillips head.
Two bolts with non-slip washer.

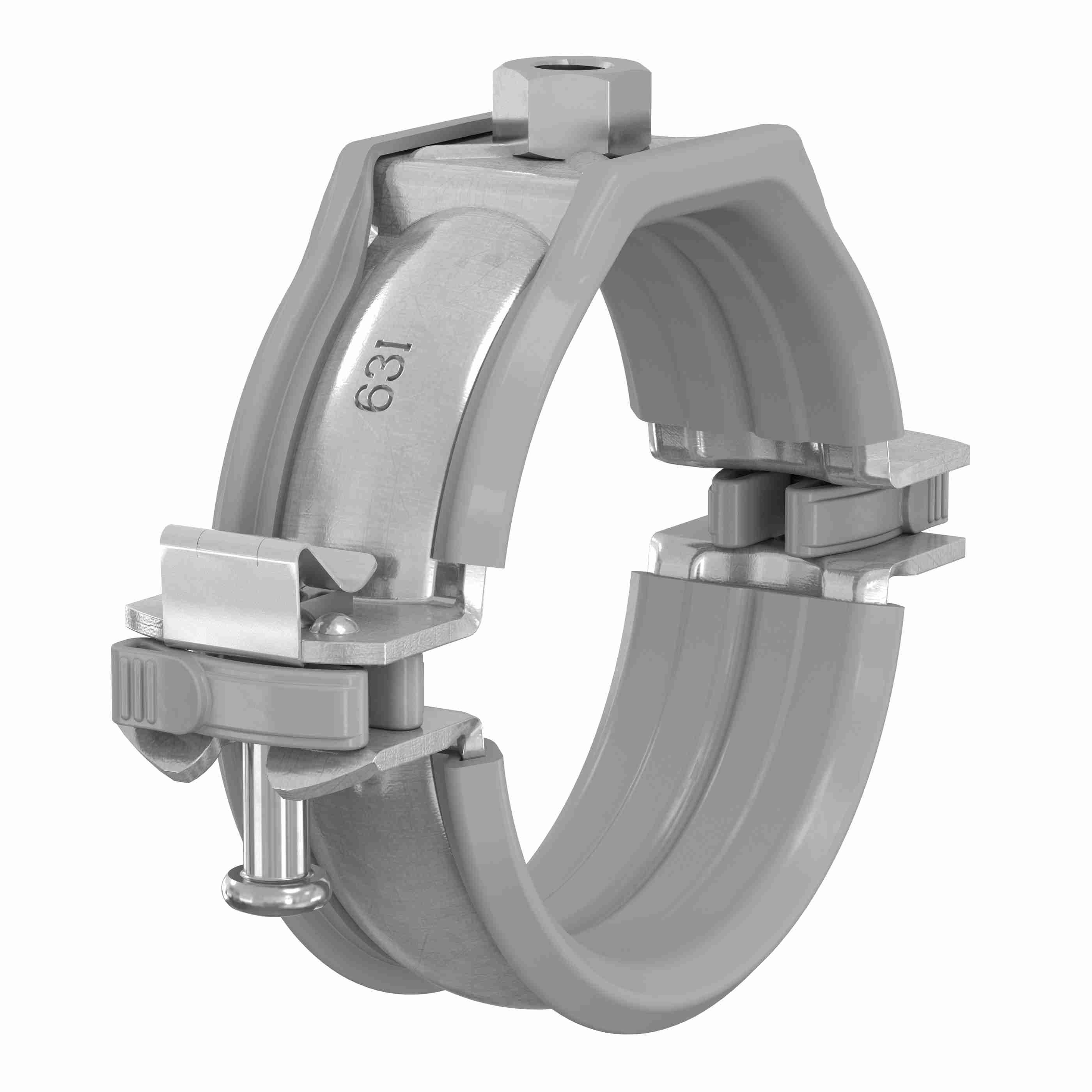

BSK-I Clips
Dedicated clips for plastic pipes with special TPE (ThermoPlastic Elastomer) lining.

The BSK-I clip has easily removable plastic spacers between the two clip halves and can be transformed into a clenching clip without the need for tools.

Special TPE lining with excellent low friction properties
UV resistant
Transformable from sliding to clamping with easily removable spacer.
Fast assembly thanks to the patented click-spring locking system.

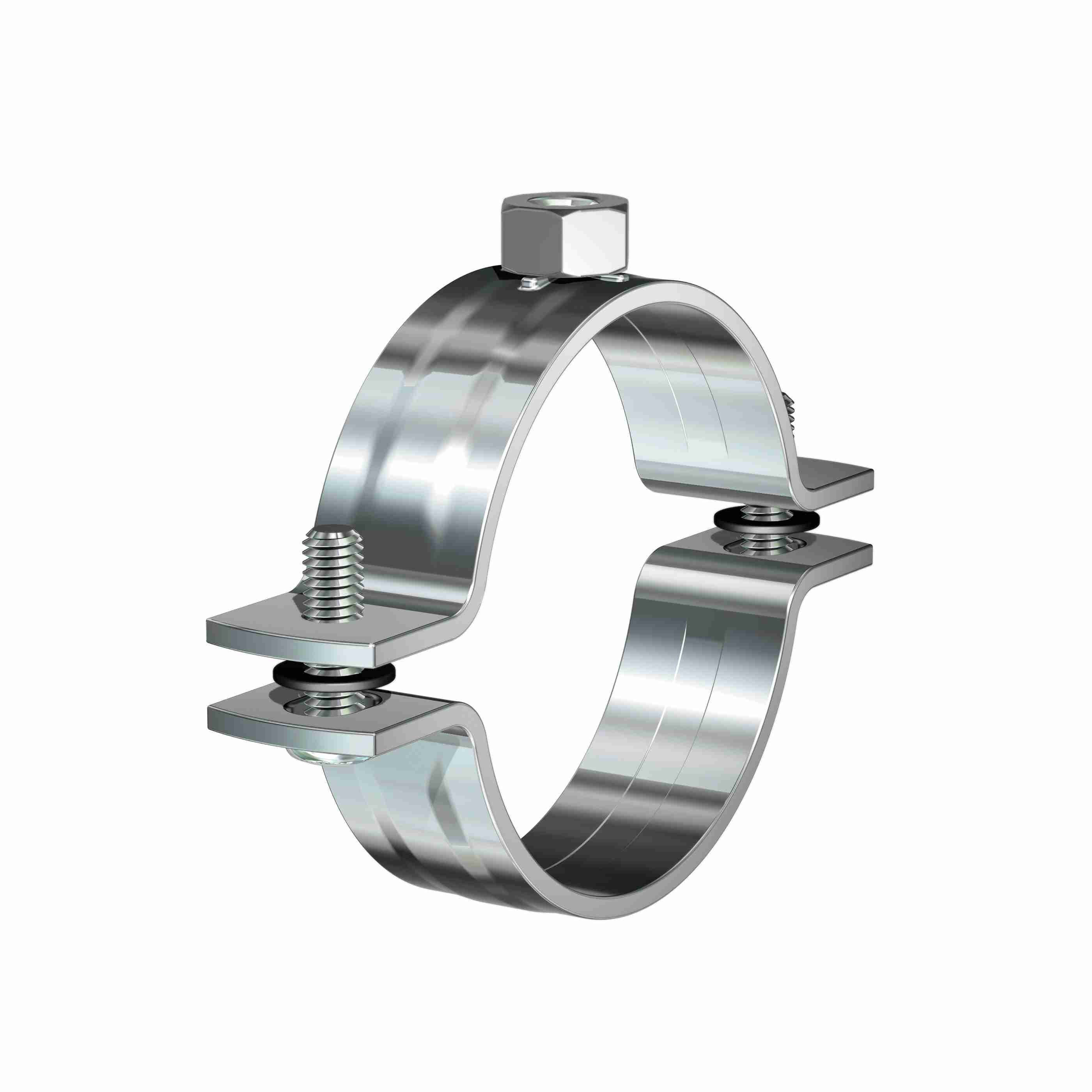

BSF Clips
Flamco's extensive clip range contains a series of clips without rubber lining. BSF clips are available in a wide range of connections and dimensions from 3/8" - 16" and allow installation in situations with minimal clearance.

Suitable for high loads and temperatures
Close fitting possible
Combined M8/10 connection

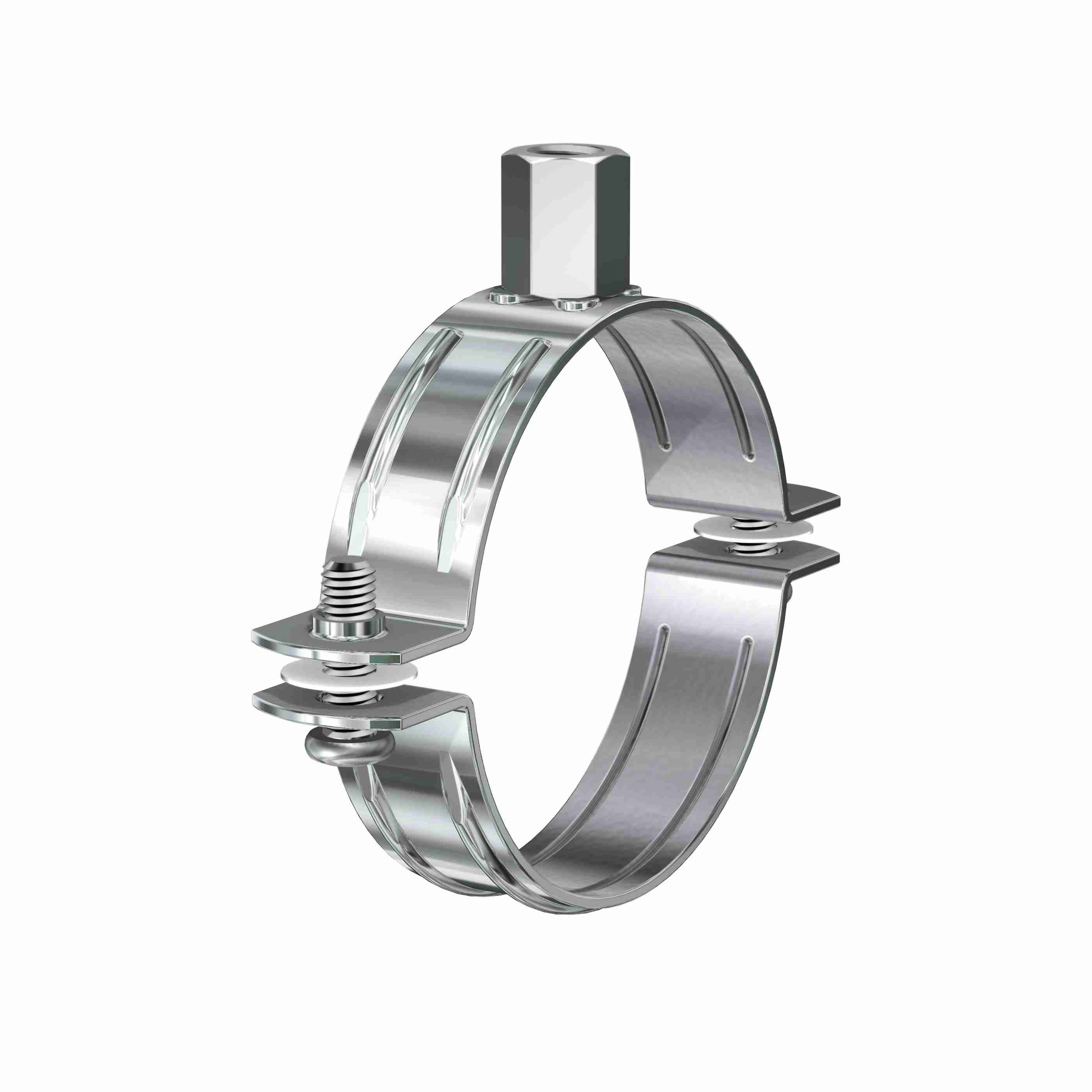

BSU Clips

With retaining ring. BSU Clips are designed for mounting steel pipes to the wall or ceiling.

Close fitting possible
Bolt with slot and cross head
Suitable for high loads and temperatures

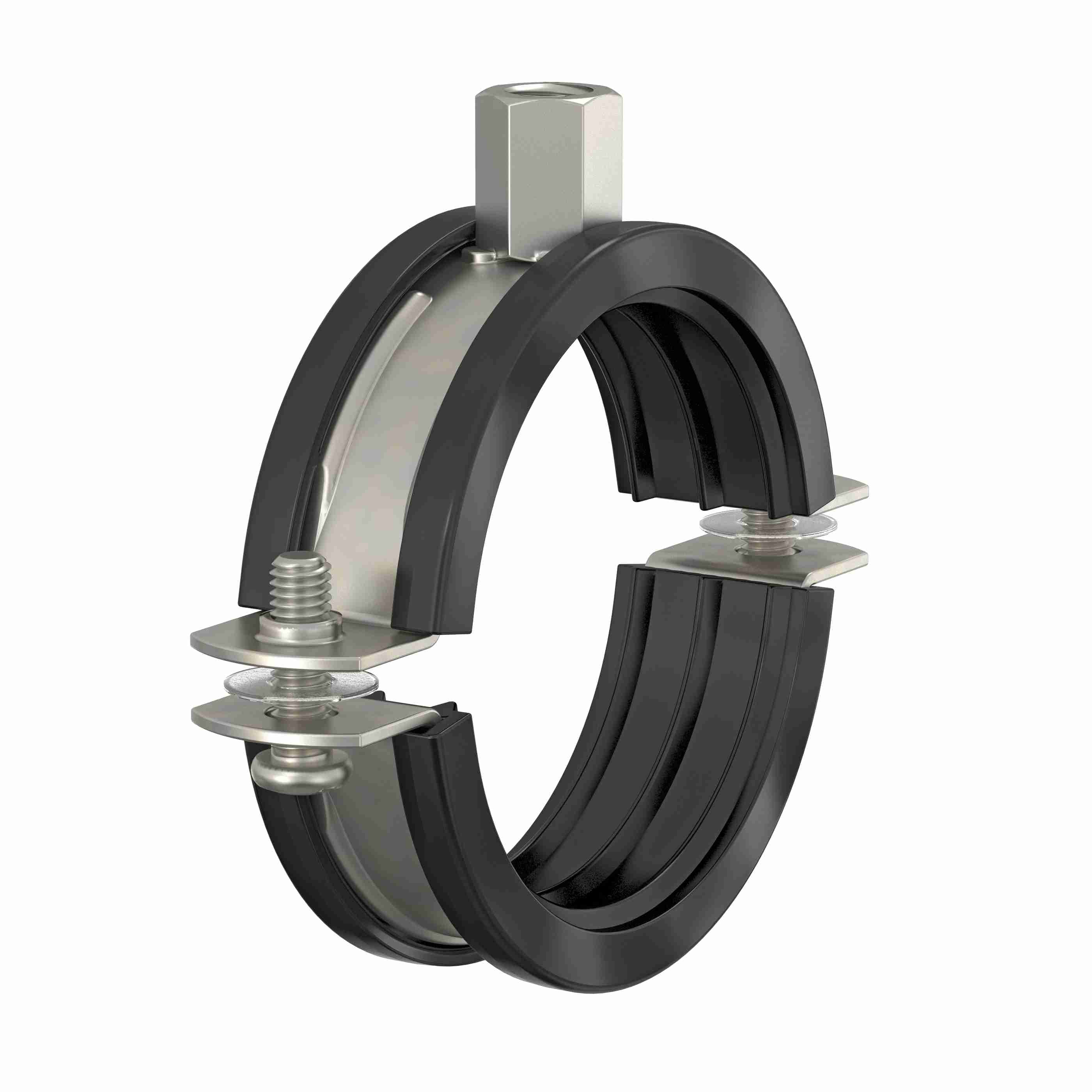

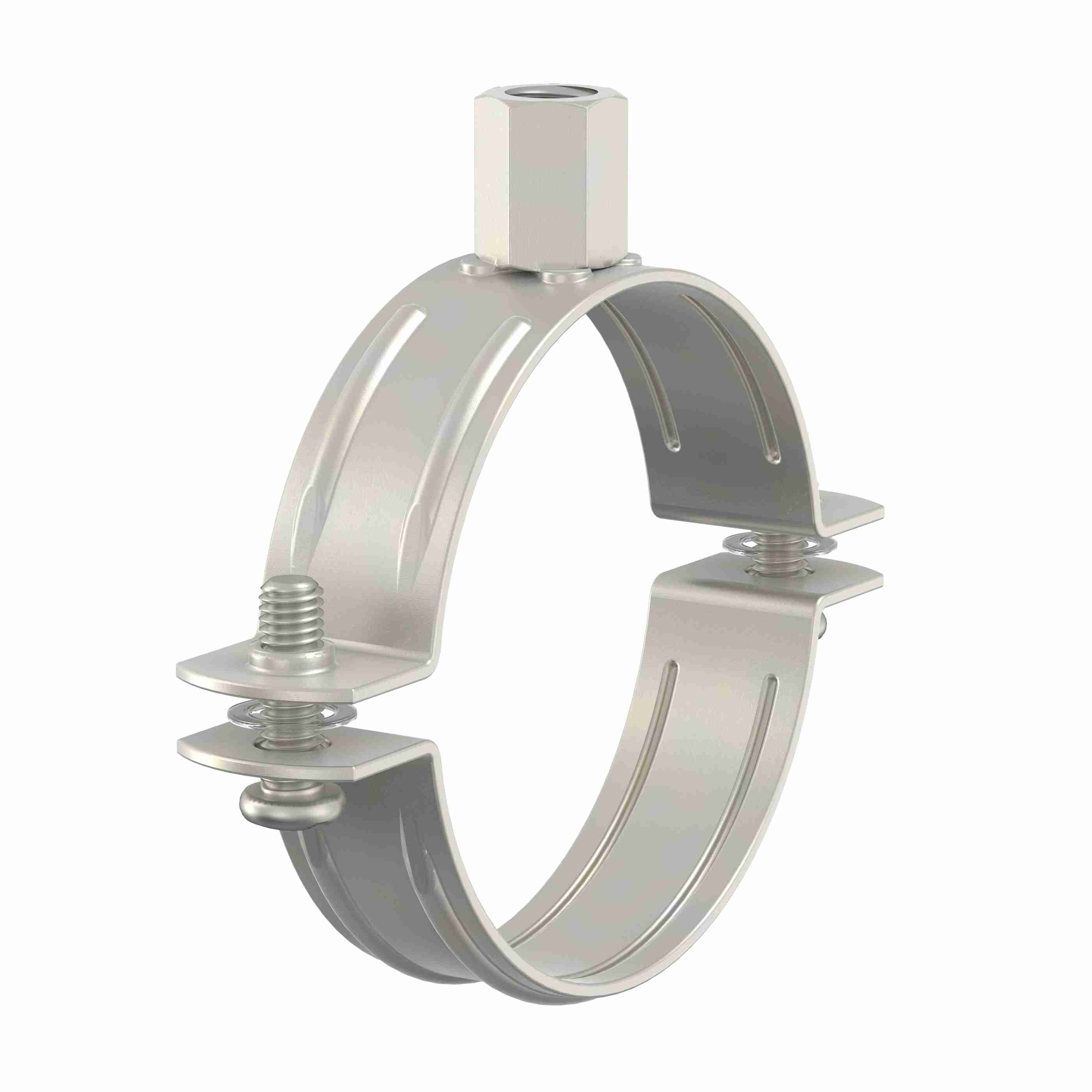

BRS/ BRS-A
For use in situations where stainless steel mounting material is necessary, such as food processing, facilities, laboratories, the chemical industry, etc.
