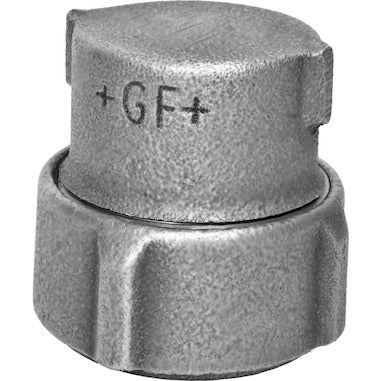

GF Primofit Black Cap FKM

Georg Fischer Primofit Black

Georg Fischer Primofit is a compression fitting which offers full end load capability. Additionally it allows a misalignment of the connected pipes up to 3° per compression joint.

Compression fitting according to prEN 10344 for connection of black steel pipes according to EN 10255 and EN 10220 with measurements according to ISO 65

Click here for Technical Brochure

Features

• Primofit compression fittings are pre-assembled, dismantling is not required
• Minimum pipe preparation
• End-Load resistant (push and pull-out), a fixing of the pipe is not required
• Quick assembly - low costs
• No special tools necessary
• Small and compact fitting
• Design of fitting bodies and nuts allow the use of shrink sleeves

Materials

Primofit compression fitting body and nuts are made out of white heart malleable cast iron EN-GJMW-400-5 acc. to EN 1562, sealing materials as above.

If necessary, corrosion protection is to be done by the installer.

Primofit Firejoint

Primofit Firejoint is a compression fitting which offers full end load capability and resistance against fire impact from outside, 650°C according German DVGW and 850°C according to British Gas test procedures. An additional graphite ring maintains end load capability and sealing in case of a fire. Additionally it bears a misalignment of the connected pipes up to 3° per compression joint.

Compression fitting according to prEN 10344 for connection of galvanised or black steel pipes according to EN 10255 and EN 10220-series 1 with measurements according to ISO 65.
